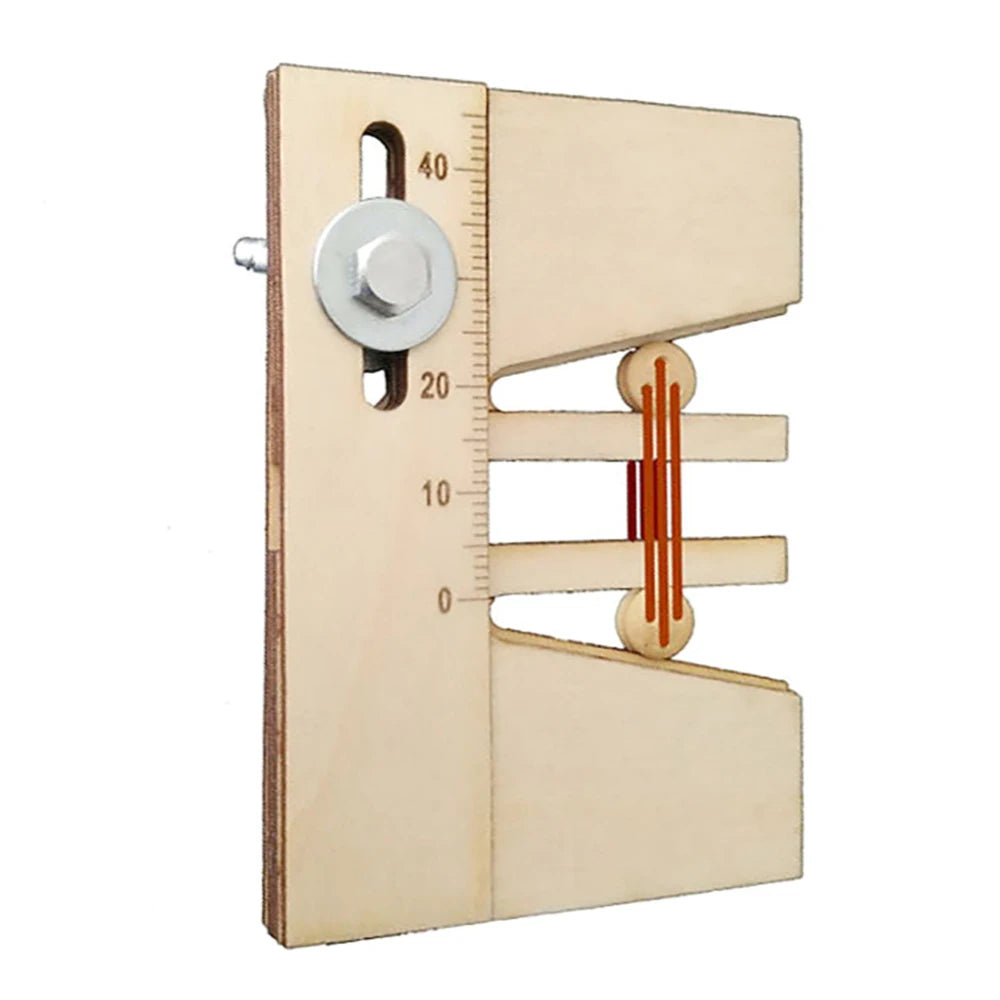

SPECIFICATION

Material: Stainless Steel

Model Number: Wooden Dead Eyes Mooring Tools

Type: Hand Tool Parts

Use: Commercial Manufacture

is_customized: Yes

Features:
- This tool can made the mooring cables work become simple and feasible.
- This tool can adjust the distance between mooring cables in a control range.
- The diameter range of the three-eye pulley which can be installed auxiliary is 3.5mm - 10mm, and the distance between the upper and lower three-eye pulley mooring cable is 10mm - 30mm.

Specifications:
Length: 70mm
Width: 55mm
Height: 7mm
Material: Wood, metal

How  to use:

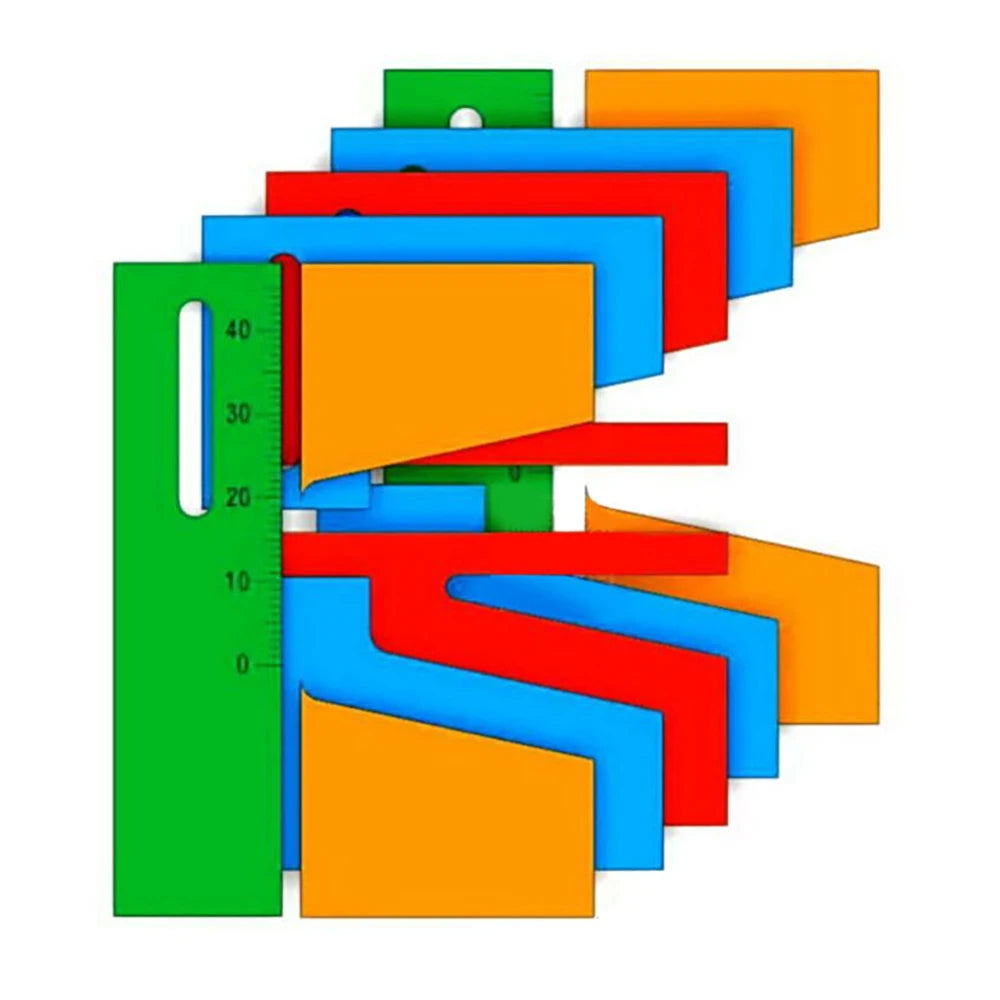

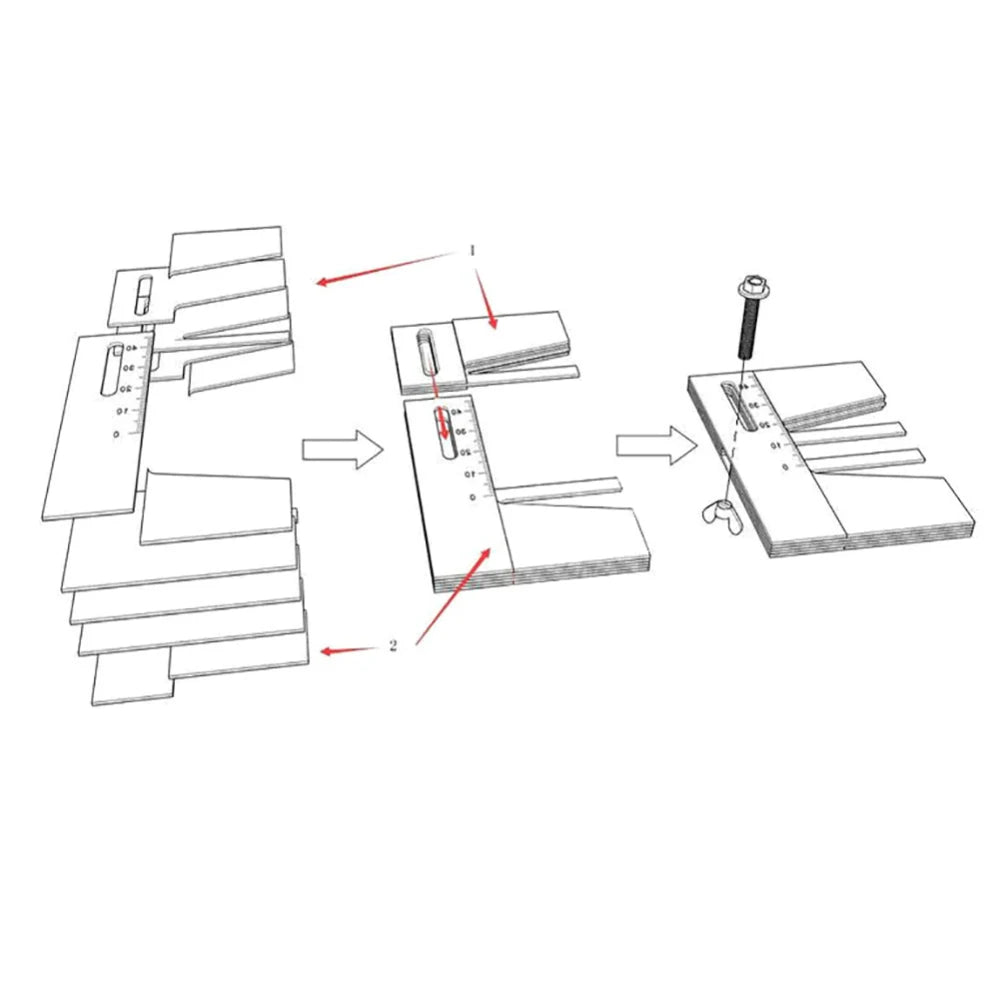

Combine the part 1 and 2 with glue , and fix with screw
First, determine the distance between the tops and bottom of the three-eye pulley set you are going to make,
And the actual distance of the blue arrow point to the blue line in the figure below.
Then loosen the auxiliary slider tightening screw (the red circle position in the figure below),
Then slide down and down according to the blue arrow direction to adjust the slider, align the scale line on the slider (the yellow circle above) to the distance you actually need, tighten the tightening screw to fix the slider, and then proceed to the following steps;

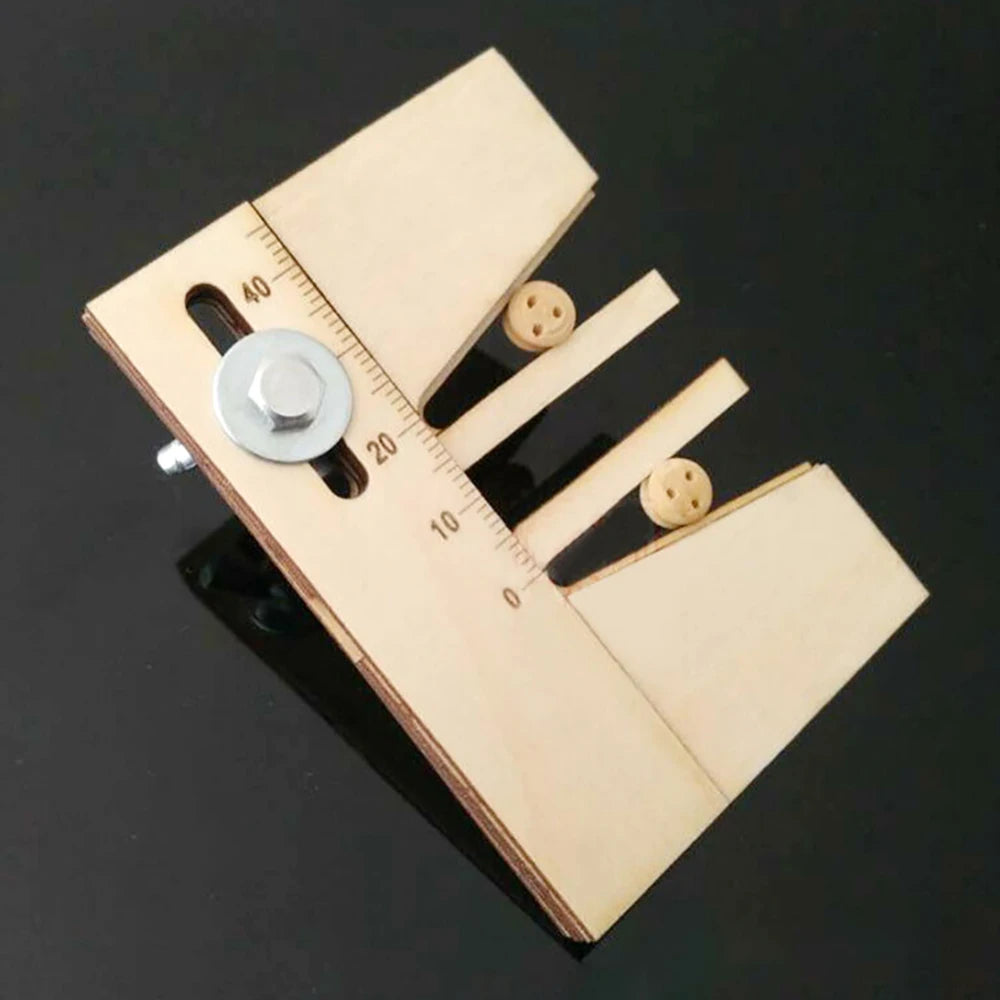

Hold the three-eyed pulley in front and back of your finger and insert it into the fixing groove of the pulley of the auxiliary device from the side.

Package Included:
1* Wood Ship Model Kit
